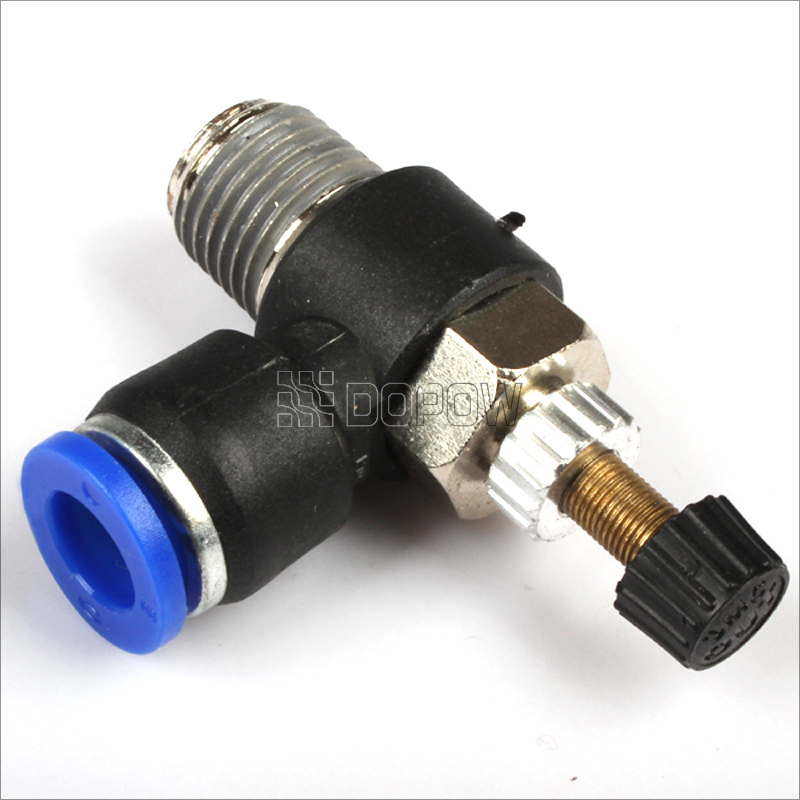

SL 气动接头 气管接头 可调接头 气动可调节 流量控制阀
产品特点：
1.快速安装，简单灵巧，节省空间。
2.型式多样，满足任何气动布管需要。
3.安装以后，塑料管体也可任意转向。
4.释放环采用椭圆型设计，拆卸更加省力方便。
5.所有锥管螺纹涂聚四氟乙烯防漏胶，密封性能好。
6.所有PC型直通接头均带内六角孔便于狭窄处安装。
7.所有接头材质都为黄铜，能有效的抗氧化和腐蚀使其寿命延长。
|
控制流入形式 |
控制流出形式 |
ФD |
R |
A |
C |
E |
B |
H |
X |
Y |
|
SL4-M5 |
SL4-M5B |
4 |
M5 |
4 |
16 |
21 |
29 |
8 |
11.6 |
10.1 |
|
SL4-01 |
SL4-01B |
4 |
1/8 |
8 |
16 |
22.5 |
38 |
12 |
11.6 |
10.1 |
|
SL4-02 |
SL402B |
4 |
1/4 |
10.5 |
16 |
25.5 |
42 |
14 |
11.6 |
10.1 |
|
SL6-M5 |
SL6-M5B |
6 |
M5 |
4 |
17 |
22.5 |
29 |
8 |
14 |
12.5 |
|
SL6-01 |
SL6-01B |
6 |
1/8 |
8 |
17 |
22.5 |
38 |
12 |
14 |
12.5 |
|
SL6-02 |
SL6-02B |
6 |
1/4 |
10.5 |
17 |
25.5 |
42 |
14 |
14 |
12.5 |
|
SL6-03 |
SL6-03B |
6 |
3/8 |
11.5 |
17 |
27 |
47 |
19 |
14 |
12.5 |
|
SL6-04 |
SL6-04B |
6 |
1/2 |
13.5 |
17 |
29.5 |
52 |
22 |
14 |
12.5 |
|
SL8-01 |
SL8-01B |
8 |
1/8 |
8 |
18 |
25.5 |
38 |
12 |
16 |
14 |
|
SL8-02 |
SL8-02B |
8 |
1/4 |
10.5 |
18 |
26.5 |
42 |
14 |
16 |
14 |
|
SL8-03 |
SL8-03B |
8 |
3/8 |
11.5 |
18 |
27.5 |
47 |
19 |
16 |
14 |
|
SL8-04 |
SL8-04B |
8 |
1/2 |
13.5 |
18 |
29.5 |
52 |
22 |
16 |
14 |
|
SL10-01 |
SL10-01B |
10 |
1/8 |
8 |
20.5 |
30 |
38 |
12 |
19 |
16.5 |
|
SL10-02 |
SL10-02B |
10 |
1/4 |
10.5 |
20.5 |
31.5 |
42 |
14 |
19 |
16.5 |
|
SL10-03 |
SL10-03B |
10 |
3/8 |
11.5 |
20.5 |
31.5 |
47 |
19 |
19 |
16.5 |
|
SL10-04 |
SL10-04B |
10 |
182 |
13.5 |
20.5 |
32.5 |
52 |
22 |
19 |
16.5 |
|
SL12-01 |
SL12-01B |
12 |
1/8 |
8 |
21.5 |
31.5 |
38 |
12 |
21.5 |
18.5 |
|
SL12-02 |
SL12-02B |
12 |
1/4 |
10.5 |
21.5 |
33.5 |
42 |
14 |
21.5 |
18.5 |
|
SL12-03 |
SL12-03B |
12 |
3/8 |
11.5 |
21.5 |
34.5 |
47 |
19 |
21.5 |
18.5 |
|
SL12-04 |
SL12-04B |
12 |
1/2 |
13.5 |
21.5 |
34.5 |
52 |
22 |
21.5 |
18.5
|
公制尺寸- BSPT 螺纹 (R 螺纹)
| 型号 | 管尺寸 | 螺纹尺寸 | 描述 |
| SL 04-M5 | 4mm | M5 | 速度控制阀 4mm M5 |
| SL 04-M6 | 4mm | M6 | 速度控制阀 4mm M6 |
| SL 04-01 | 4mm | R1/8″ | 速度控制阀 4mm R1/8″ |
| SL 04-02 | 4mm | R1/4″ | 速度控制阀 4mm R1/4″ |
| SL 6-M5 | 6mm | M5 | 速度控制阀 6mm M5 |
| SL 6-M6 | 6mm | M6 | 速度控制阀 6mm M6 |
| SL 6-01 | 6mm | R1/8″ | 速度控制阀 6mm R1/8″ |
| SL 6-02 | 6mm | R1/4″ | 速度控制阀 6mm R1/4″ |
| SL 6-03 | 6mm | R3/8″ | 速度控制阀 6mm R3/8″ |
| SL 6-04 | 6mm | R1/2″ | 速度控制阀 6mm R1/2″ |
| SL 8-01 | 8mm | R1/8″ | 速度控制阀 8mm R1/8″ |
| SL 8-02 | 8mm | R1/4″ | 速度控制阀 8mm R1/4″ |
| SL 8-03 | 8mm | R3/8″ | 速度控制阀 8mm R3/8″ |
| SL 8-04 | 8mm | R1/2″ | 速度控制阀 8mm R1/2″ |
| SL 10-01 | 10mm | R1/8″ | 速度控制阀 10mm R1/8″ |
| SL 10-02 | 10mm | R1/4″ | 速度控制阀 10mm R1/4″ |
| SL 10-03 | 10mm | R3/8″ | 速度控制阀 10mm R3/8″ |
| SL 10-04 | 10mm | R1/2″ | 速度控制阀10mm R1/2″ |
| SL12-01 | 12mm | R1/8″ | 速度控制阀 12mm R1/8″ |
| SL 12-02 | 12mm | R1/4″ | 速度控制阀 12mm R1/4″ |
| SL 12-03 | 12mm | R3/8″ | 速度控制阀 12mm R3/8″ |
| SL 12-04 | 12mm | R1/2″ | 速度控制阀 12mm R1/2″ |
