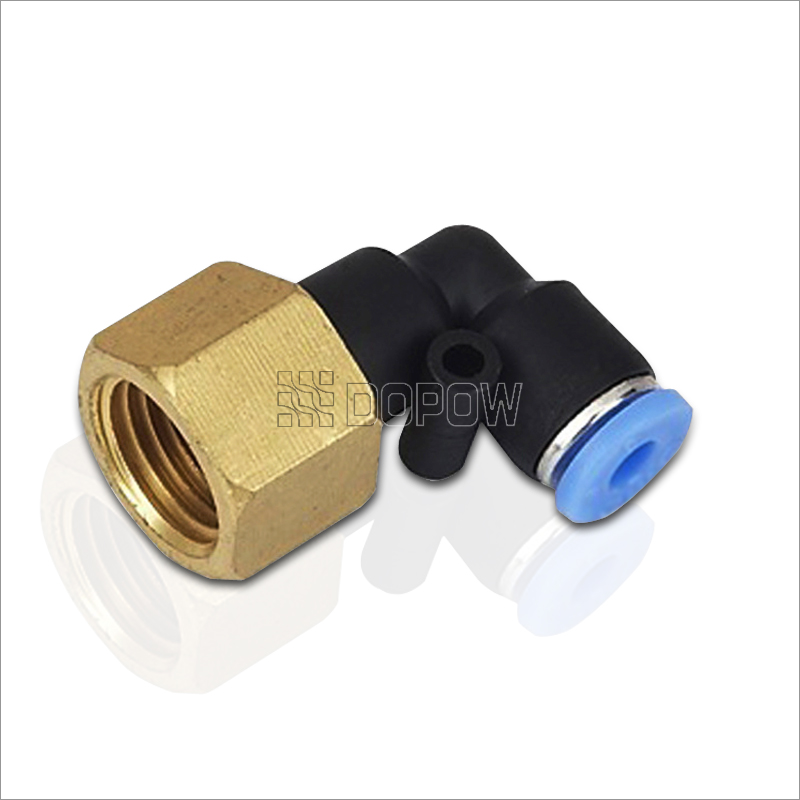

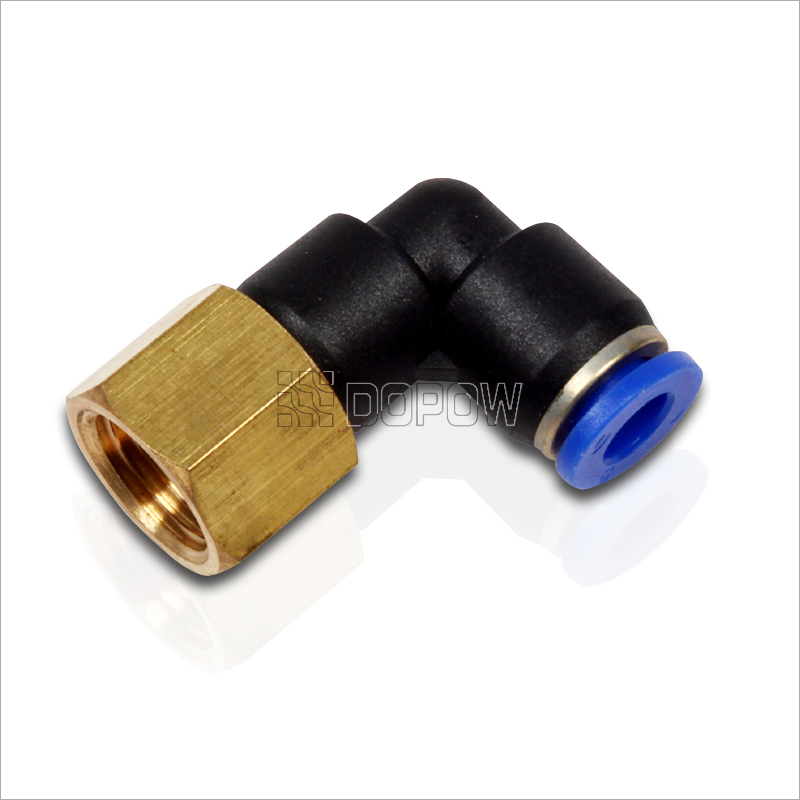

PLF 快速接头 PLF接头 L型内螺纹二通 气动接头
PLF 快速接头 PLF接头 L型内螺纹二通 气动接头
PLF 快速接头 PLF接头 L型内螺纹二通 气动接头
1. 全检–在8公斤的压力下经过漏气检测，确保产品稳定.
2.耐高压–30公斤压力下保持两个小时不会出现任何问题.
3. 所有锥管螺纹预涂聚四氟乙烯防漏胶，密封性能好
4.温度范围: 0~1.0 MPa (0~150 PSI).
5.压力范围: 0~60ºC (32~140ºF).
-
- PLF 快速接头 PLF接头 L型内螺纹二通 气动接头
| 型号 | ФD | Rc | A | E | X | Y | C |
| PLF4-M5 | 4 | M5 | 5.5 | 19.5 | 11.6 | 10.1 | 16 |
| PLF4-01 | 4 | RC1/8 | 8 | ||||
| PLF4-02 | 4 | RC1/4 | 11 | ||||
| PLF6-M5 | 6 | M5 | 5.5 | 20.5 | 14 | 12.5 | 17 |
| PLF6-01 | 6 | RC1/8 | 8 | 12.5 | |||
| PLF6-02 | 6 | RC1/4 | 11 | 12.5 | |||
| PLF6-03 | 6 | RC3/8 | 12 | 12.5 | |||
| PLF6-04 | 6 | RC1/2 | 14 | 12.5 | |||
| PLF8-01 | 8 | RC1/8 | 8 | 21 | 16 | 14 | 18 |
| PLF8-02 | 8 | RC1/4 | 11 | ||||
| PLF8-03 | 8 | RC3/8 | 12 | ||||
| PLF8-04 | 8 | RC1/8 | 14 | ||||
| PLF10-01 | 10 | RC1/8 | 8 | 25 | 19 | 15.5 | 20.5 |
| PLF10-02 | 10 | RC1/4 | 11 | ||||
| PLF10-03 | 10 | RC3/8 | 12 | ||||
| PLF10-04 | 10 | RC1/2 | 14 | ||||
| PLF12-02 | 12 | RC1/4 | 11 | 27.5 | 21.5 | 18.5 | 22.5 |
| PLF12-03 | 12 | RC3/8 | 12 | ||||
| PLF12-04 | 12 | RC1/2 | 14 | ||||
| PLF16-03 | 16 | RC3/8 | 11 | 32.5 | 27 | 24 | 24 |
| PLF16-04 | 16 | RC1/2 | 14 | 32.5 | 27 | 24 | 24 |
