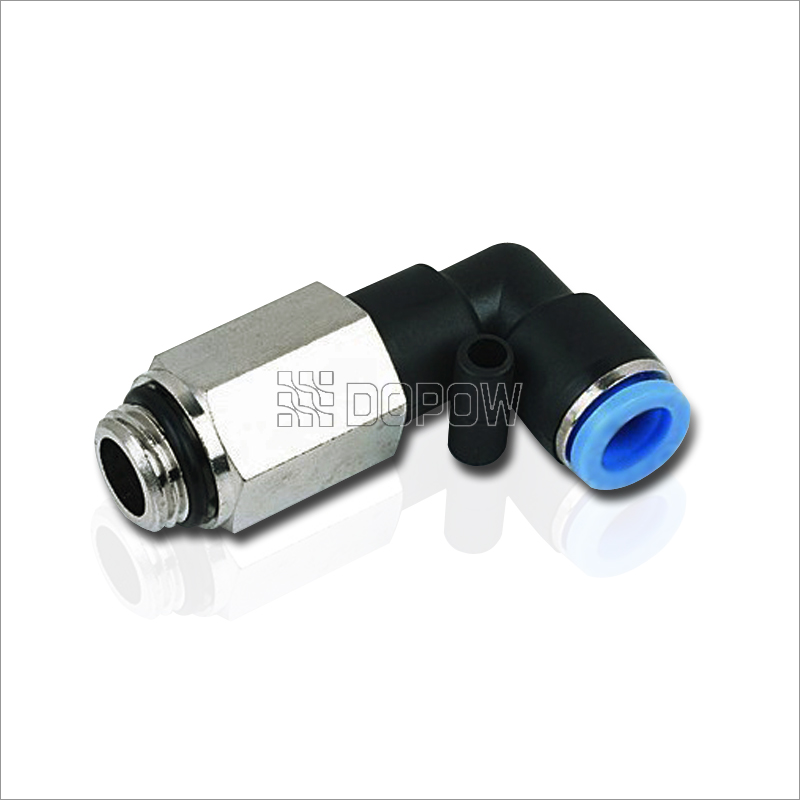

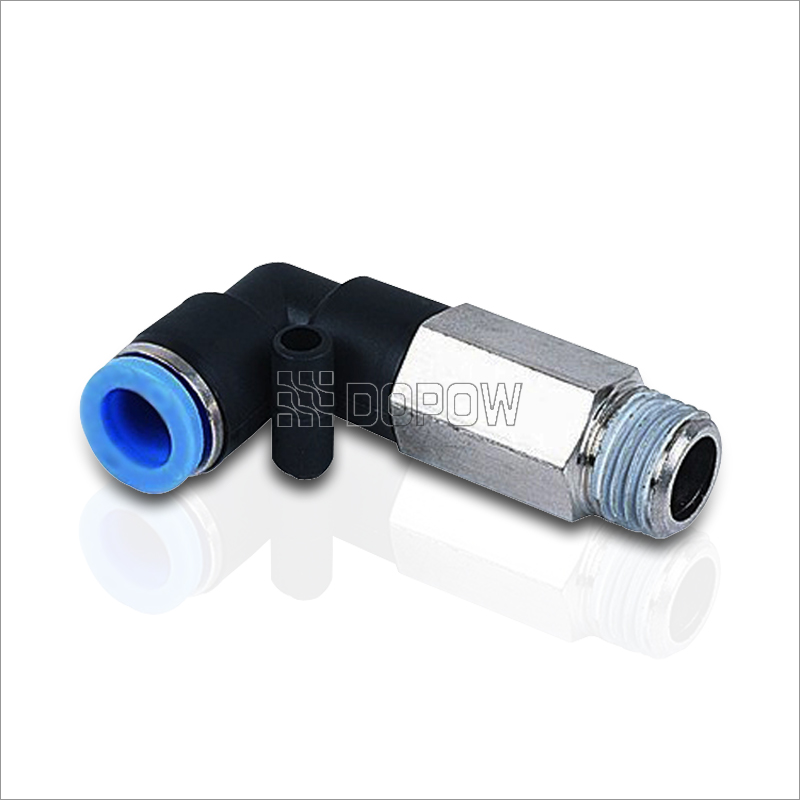

PLL接头 加长L型二通 气动接头 接头加长L型 内螺纹
PLL接头 加长L型二通 气动接头 接头加长L型 内螺纹
PLL接头 加长L型二通 气动接头 接头加长L型 内螺纹

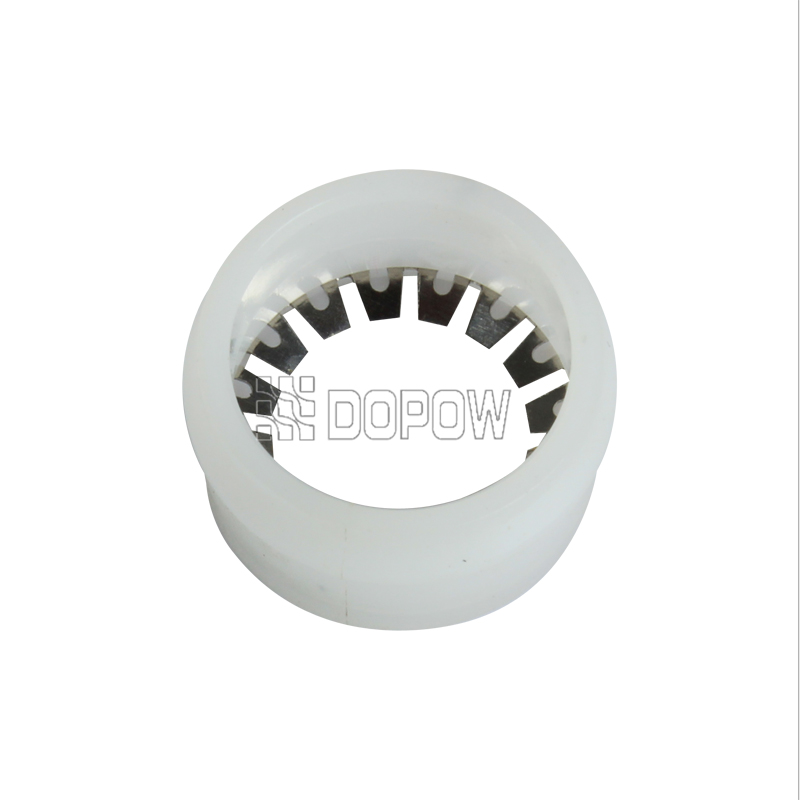

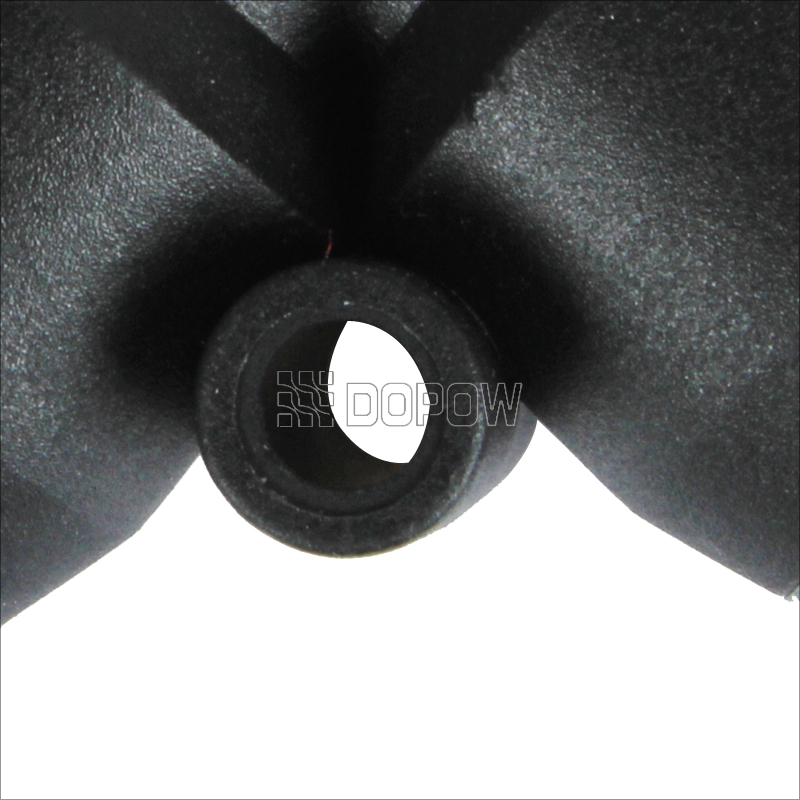

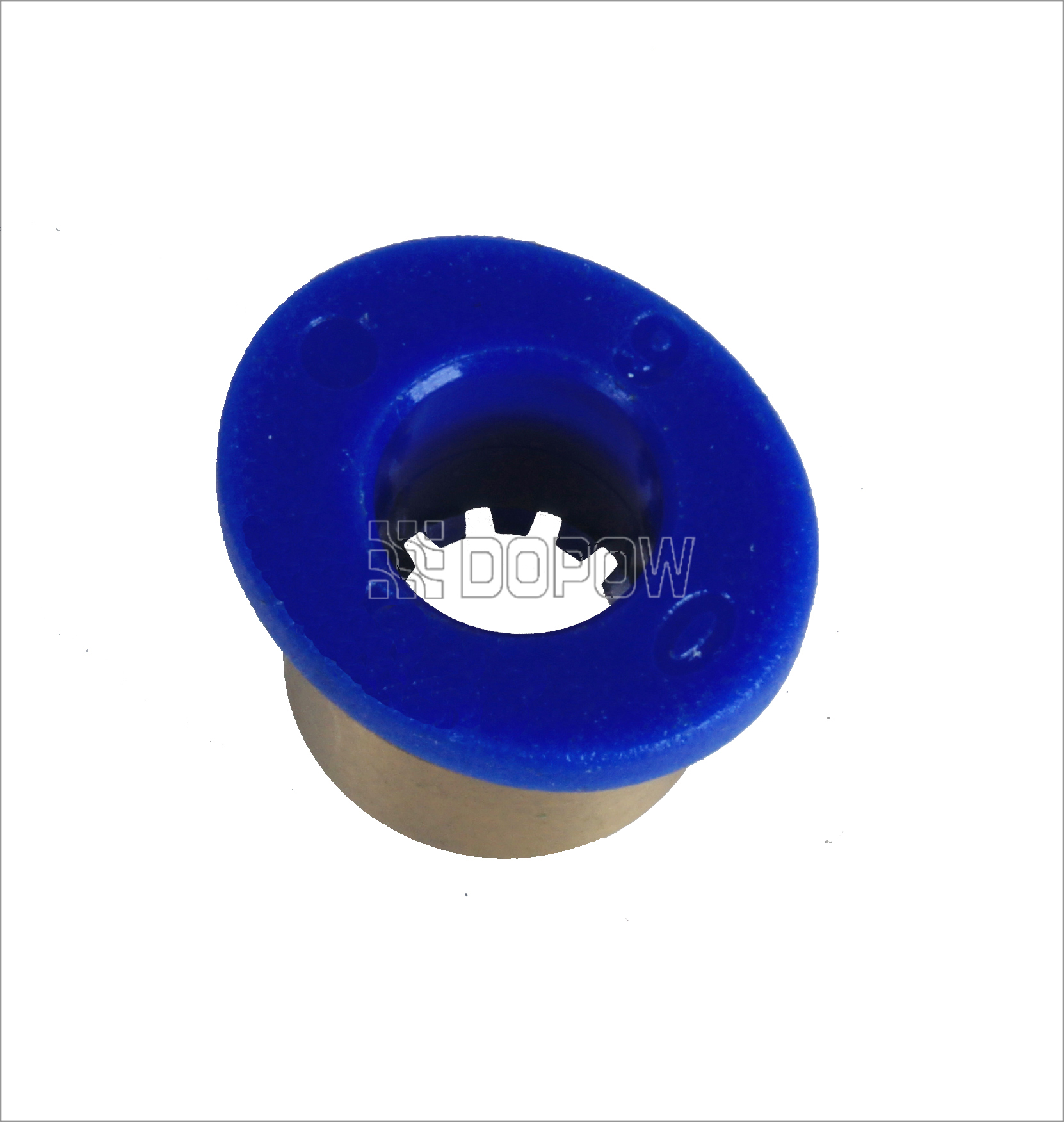

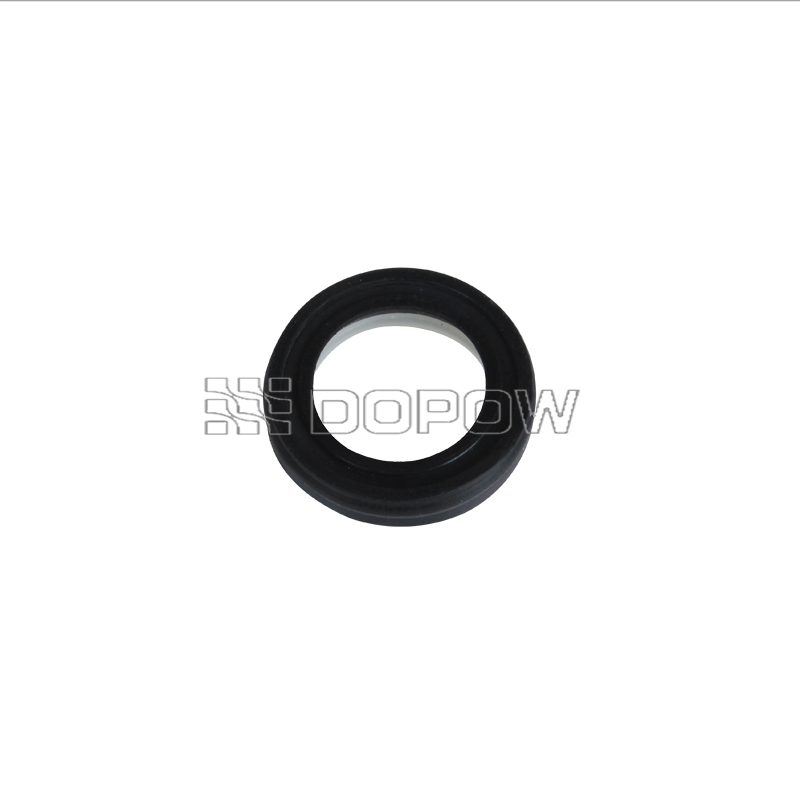

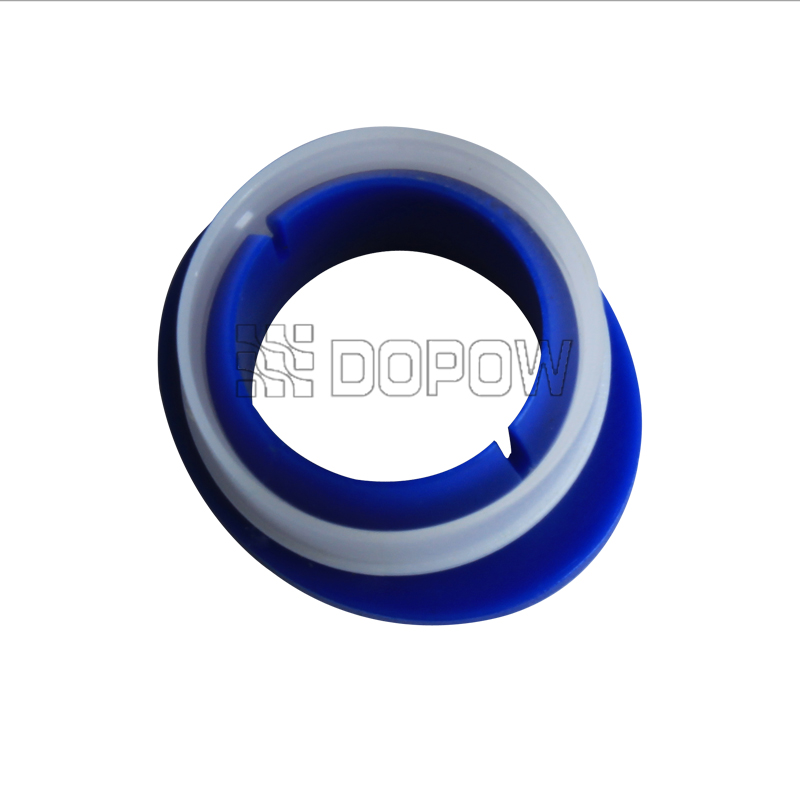

1. 全检–在8公斤的压力下经过漏气检测，确保产品稳定.
2.耐高压–30公斤压力下保持两个小时不会出现任何问题.
3. 所有锥管螺纹预涂聚四氟乙烯防漏胶，密封性能好
4.温度范围: 0~1.0 MPa (0~150 PSI).
5.压力范围: 0~60ºC (32~140ºF).
-
- PLL接头 加长L型二通 气动接头 接头加长L型 内螺纹
| 型号 | ФD | R | A | B | E | H | X | Y | X1 | C |
| PLL4-M5 | 4 | M5 | 4 | 33.5 | 17.5 | 8 | 11.9 | 10.5 | 10 | 14.9 |
| PLL4-01 | 4 | R1/8 | 7.5 | 36 | 17.5 | 10 | 11.9 | 10.5 | 10 | 14.9 |
| PLL4-02 | 4 | R1/4 | 9.5 | 39 | 17.5 | 14 | 11.9 | 10.5 | 10 | 14.9 |
| PLL6-M5 | 6 | M5 | 4 | 36.7 | 19 | 8 | 13.9 | 12.5 | 12 | 15.7 |
| PLL6-01 | 6 | R1/8 | 7.5 | 39.7 | 19 | 12 | 13.9 | 12.5 | 12 | 15.7 |
| PLL6-02 | 6 | R1/4 | 9.5 | 42.2 | 19 | 14 | 13.9 | 12.5 | 12 | 15.7 |
| PLL6-03 | 6 | R3/8 | 10.5 | 43.7 | 19 | 17 | 13.9 | 12.5 | 12 | 15.7 |
| PLL6-04 | 6 | R1/2 | 13.5 | 47.2 | 19 | 21 | 13.9 | 12.5 | 12 | 15.7 |
| PLL8-01 | 8 | R1/8 | 7.5 | 44.8 | 22.8 | 14 | 15.9 | 13.9 | 14 | 17.7 |
| PLL8-02 | 8 | R1/4 | 9.5 | 46.8 | 22.8 | 14 | 15.9 | 13.9 | 14 | 17.7 |
| PLL8-03 | 8 | R3/8 | 10.5 | 48.4 | 22.8 | 17 | 15.9 | 13.9 | 14 | 17.7 |
| PLL8-04 | 8 | R1/2 | 13.5 | 51.8 | 22.8 | 21 | 15.9 | 13.9 | 14 | 17.7 |
| PLL10-01 | 10 | R1/8 | 7.5 | 54.3 | 28 | 17 | 19.5 | 17 | 17 | 20.7 |
| PLL10-02 | 10 | R1/4 | 9.5 | 56.3 | 28 | 17 | 19.5 | 17 | 17 | 20.7 |
| PLL10-03 | 10 | R3/8 | 10.5 | 27.3 | 28 | 17 | 19.5 | 17 | 17 | 20.7 |
| PLL10-04 | 10 | R1/2 | 13.5 | 60.8 | 28 | 21 | 19.5 | 17 | 17 | 20.7 |
| PLL12-01 | 12 | R1/8 | 7.5 | 61 | 30 | 21 | 23 | 20.5 | 20 | 22.9 |
| PLL12-02 | 12 | R1/4 | 10.5 | 61.5 | 29.6 | 21 | 23 | 20.5 | 20 | 20.9 |
| PLL12-03 | 12 | R3/8 | 10.5 | 62.5 | 29.6 | 21 | 23 | 20.5 | 20 | 22.9 |
| PLL12-04 | 12 | R1/2 | 13.5 | 65.5 | 29.6 | 21 | 23 | 20.5 | 20 | 22.9 |
| PLL16-03 | 16 | R3/8 | 10.5 | 74 | 33 | 24 | 27 | 24 | 23.5 | 24 |
| PLL16-04 | 16 | R1/2 | 13.5 | 78.5 | 33 | 27 | 24 | 23.5 | 24 |
